Engine on mounting stand, installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

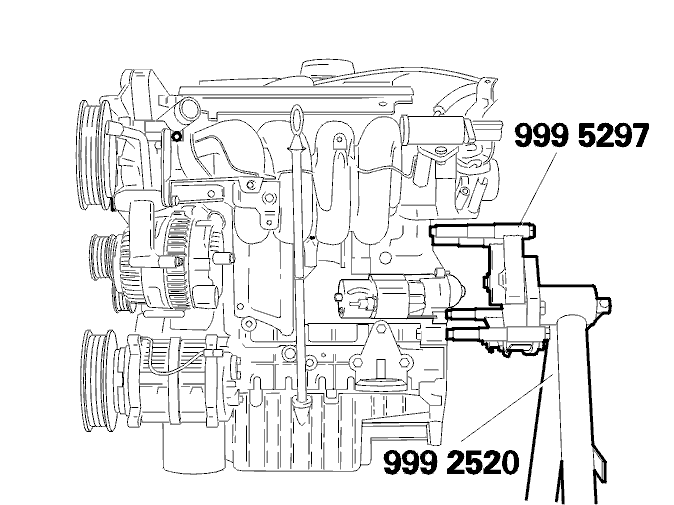

Fig 1: Installing Engine On Mounting Stand
GLL113349Courtesy of VOLVO CARS OF NORTH AMERICA.

Use engine stand 999 2520 and support 999 5297.

Remove the lifting tools.

Install an appropriate number of washers to compensate for the transmission guide pins.
