Engine components exhaust side, transferring
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To ensure that there is no exhaust leakage, see Flanged joint, assembling
.

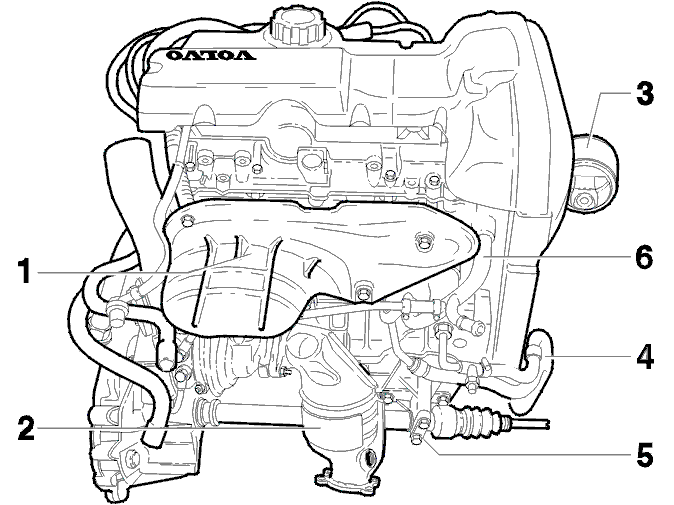

- The pre-heater plate
- Exhaust manifold
- The engine mounting on the timing belt side
- The thermostat housing and the oil cooler and hoses
- The bracket for the drive shaft bearing
- The coolant pipe.
