Engine components air intake side, transferring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

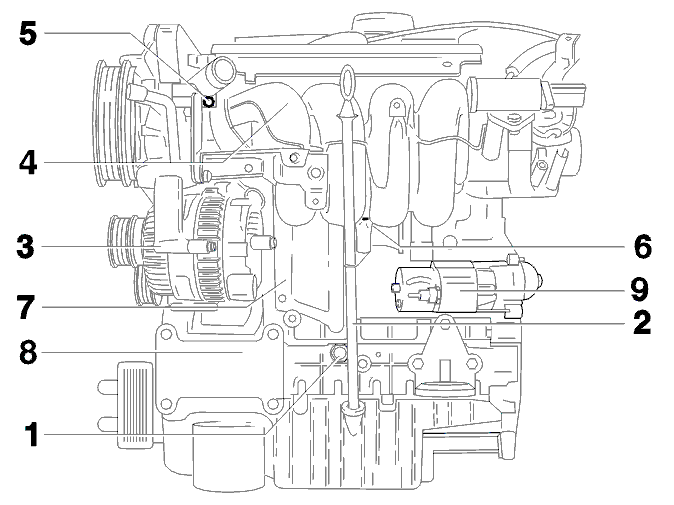

Fig 1: Transferring Engine Components Air Intake Side
GLL113738Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Oil pressure sensor
  2. Oil dipstick and pipe
  3. Generator (GEN)
  4. The intake manifold assembly with the radiator hose connection
  5. The thermostat assembly
  6. Knock sensor (KS)
  7. The flame trap and hoses
  8. The engine mountings and the lifting eyelet
  9. The starter motor wiring.
