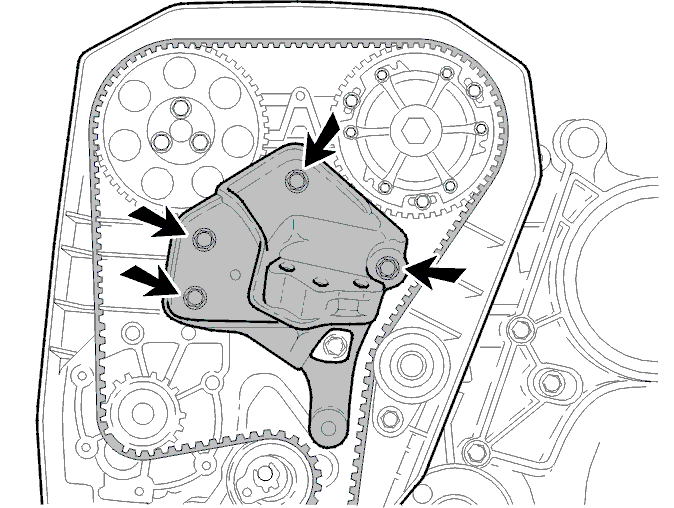

Fig 1: Installing Engine Mounting
Courtesy of VOLVO CARS OF NORTH AMERICA.
Place engine mount on cylinder head. Screw down the engine mount against the cylinder head. Tighten with 35 Nm
and then tighten through an angle of 75°
, one movement without interruption.
