Coolant pump's inlet pipe, installing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Install the inlet pipe for the coolant pump on the cylinder head. Use a new gasket.
NOTE:
Apply thread sealant, 116 1056
on the screws' threads.

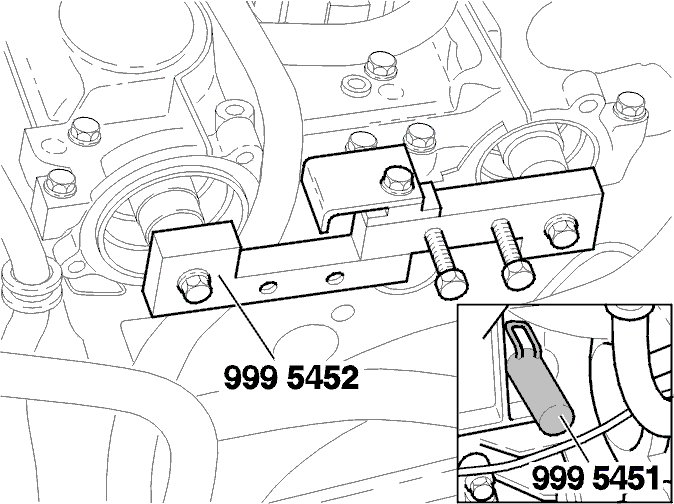

Fit the camshaft gauge 9995452 on the rear edge of the camshafts. Make sure the screws holding the gauge to the camshafts and the screw holding the gauges together as a unit are well tightened.
