Camshaft seals, replacing: Preparations

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Remove:

the cable from the battery's negative terminal. First read Note when disconnecting and connecting the battery lead .
the inlet hose between air filter and throttle housing. Put it aside.

Fig 1: Removing Brake Servo's Vacuum Hose From Its Connection In Throttle Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the brake servos vacuum hose from its connection in the throttle housing. Loosen the hose by pressing down the plastic ring at the same time as the hose is pulled upwards. Move the hose aside.
the fuel line and cabling from its clips in the cylinder head's trailing edge.

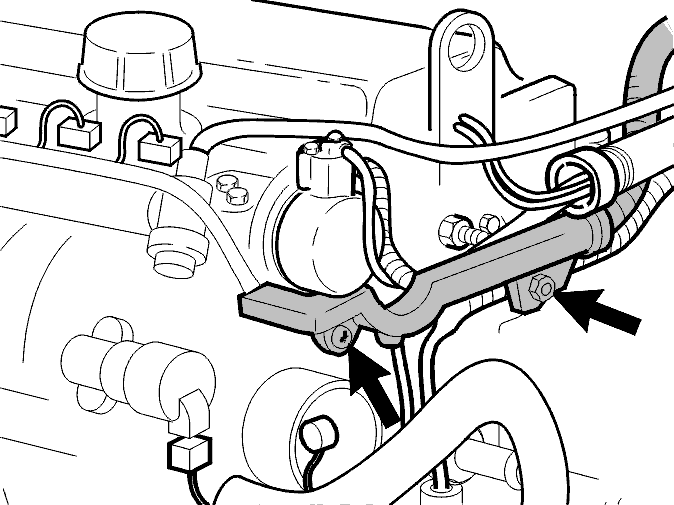

Fig 2: Cable Channel Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the cable channel's screws.
camshaft's rear cover.
the camshaft position (CMP) sensor housing
the trigger wheel.
right engine protection cover (only turbo).
the auxiliaries belt
