Removing the turbocharger (TC) control valve

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

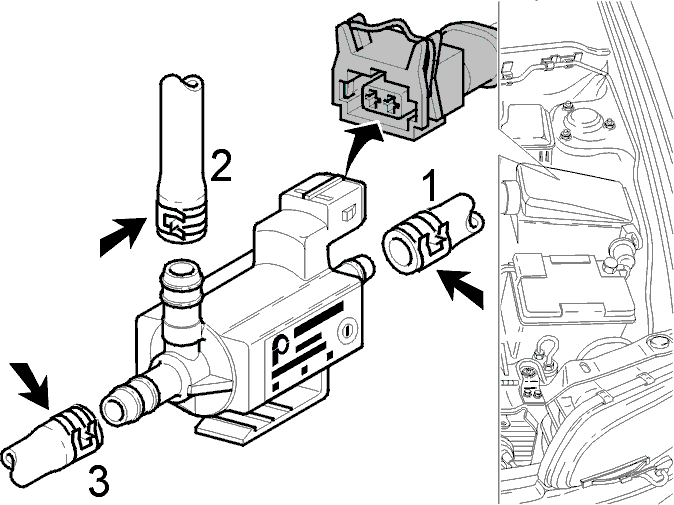

Fig 1: Removing/Installing Turbocharger (TC) Control Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removing/disconnecting

The connector.
The turbocharger (TC) control valve from the air cleaner (ACL) housing.
The clamps and hoses on the valve.

NOTE: Note how the hoses are connected.

HINT: If it is difficult to pull off the hose: Cut the hose along its length at the connection.
