Installing the ignition coil(s)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

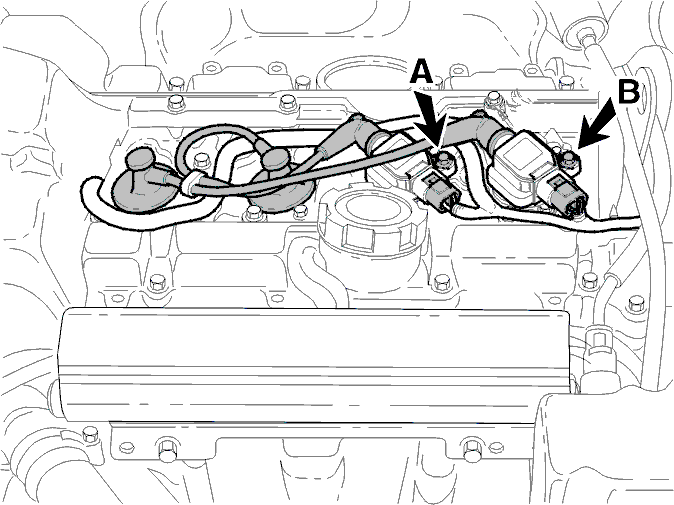

Fig 1: Ignition Coil Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the rubber and spring inside. Replace if necessary.
Fit the ignition coils in place and press them in.
Tighten the screw. Tightening torque 10 Nm .
Connect the high voltage cables.
Reattach the connector.
NOTE: The grey connector is for the left-hand coil (cylinder 2 and 3), the blue connector is for the right-hand coil (cylinder 1 and 4).
Check the function.
Fit both engine covers.
