Checking the crankcase ventilation

Fig 1: Crankcase Ventilation Hose With Clamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the oil filler cap
• the charge air hose between the turbocharger and the charge air pipe over the engine
• the crankcase ventilation hose.

Blow compressed air into the hose toward the oil trap.

Install:

• the crankcase ventilation hose with a new  clamp
• the charge air hose.

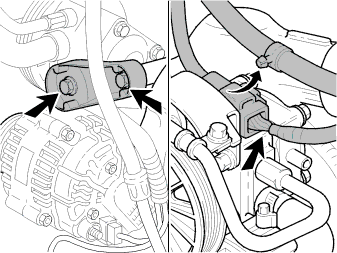

Fig 2: Removing/Installing Bracket Between Power Steering Pump And Intake Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the bracket between the power steering pump and the intake manifold.

Detach the cable clip.

Remove the connector assembly from the bracket.

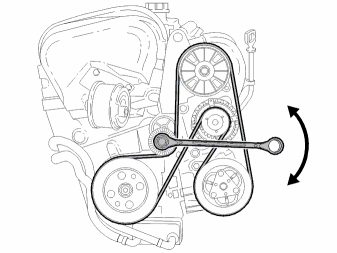

Fig 3: Turning Screw On Belt Tensioner Clockwise/Turn Belt Tensioner Clockwise Using 999 7109

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the screw on the belt tensioner clockwise/turn the belt tensioner clockwise. Use 9997109

Remove the poly-V belt from the pump and put it aside.

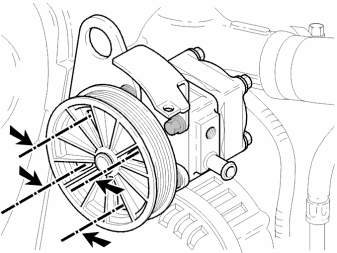

Fig 4: Removing/Installing Retaining Screws Between Spokes Of Belt Pulley

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the retaining screws between the spokes of the belt pulley.

Move the pump toward the power steering fluid reservoir.

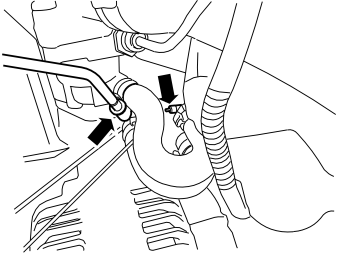

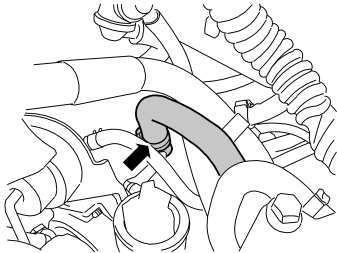

Fig 5: Detaching Hose From Nipple On Intake Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach the hose from the nipple on the intake pipe.

Clean the nipple with a piece of welding wire.

Blow the hose clean with compressed air.

Fig 6: Removing/Installing Retaining Screws Between Spokes Of Belt Pulley

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the power steering pump in the bracket.

Position the mounting and retaining screws on the front and tighten by hand.

Tighten all screws to 25 Nm  .

Fig 7: Removing/Installing Bracket Between Power Steering Pump And Intake Manifold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the bracket and tighten the screws to 25 Nm  .

Fasten:

• the connector on the bracket
• the cable in the clip.

Fig 8: Turning Screw On Belt Tensioner Clockwise/Turn Belt Tensioner Clockwise Using 999 7109

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the poly-V belt.

Install the belt tensioner.

Check that the belt is properly installed.
