Connect the test equipment
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

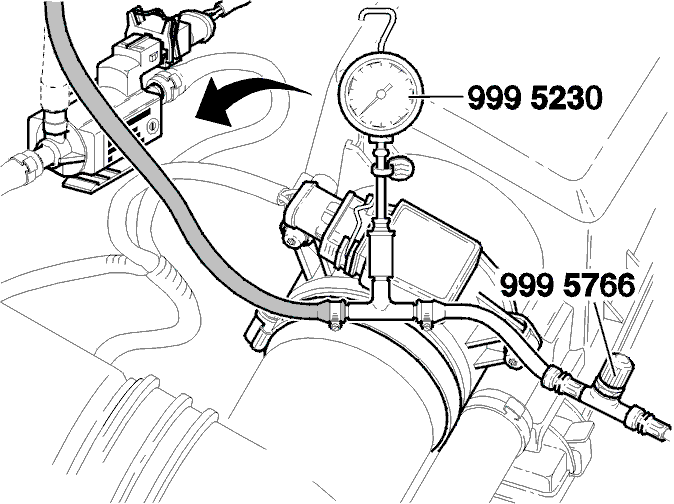

- Remove the turbocharger (TC) control valve from the air cleaner (ACL) housing
- Remove the yellow marked hose (A) from the turbocharger (TC) control valve
- Connect special tool
9995230
and pressure regulator
9995766
to the removed hose
- Connect the workshop air supply to
9995766
.
