Removing the EVAP canister
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Protective gloves and protective goggles should be used for the following operations because of the risk of fuel spillage.

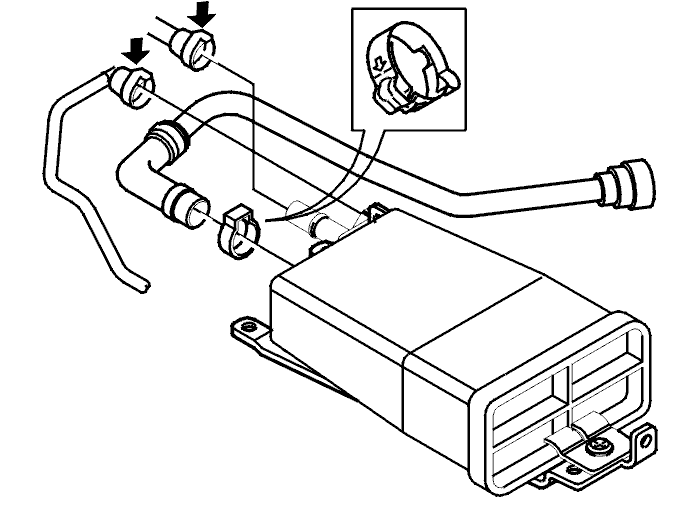

Remove:
- connector/outlet. Press in the catch and pull
- connector/inlet. Press in the catch and pull
- three screws holding the canister
- outlet hose from the leak diagnostic pump.
