Hoses and screws, removing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

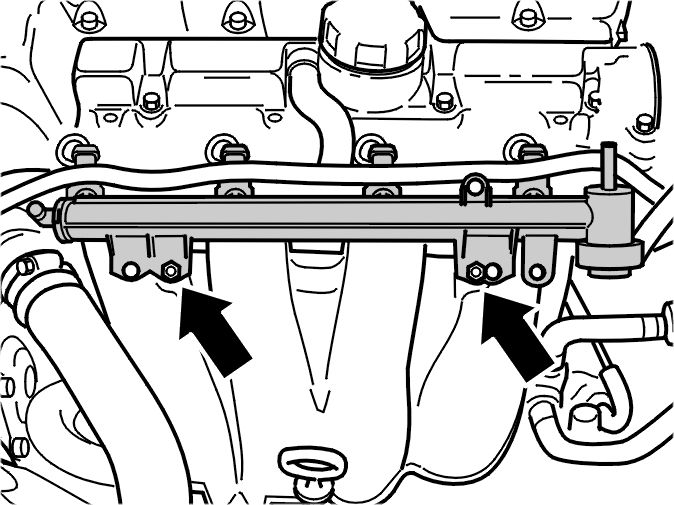

Fig 1: Screws Holding Fuel Rail

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screws holding the fuel rail. Lift out the fuel distributor with the injectors still secured in place
Disconnect the vacuum hose from the intake manifold.

NOTE: Handle the injectors carefully so that they are not damaged.

NOTE: Retain all the rubber bushings for the intake manifold.
