Removing the leak diagnostic pump

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

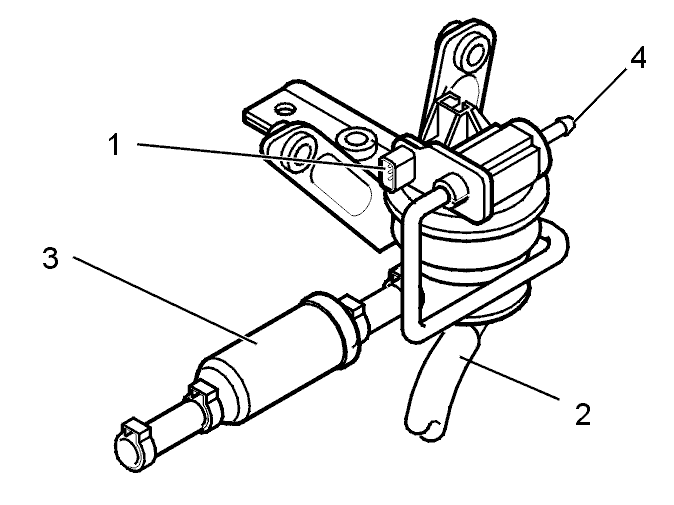

Fig 1: Leak Diagnostic Pump, EVAP Canister, Leak Diagnostic Filter & Canister Purge (CP) Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the connector on the leak diagnostic pump (1)
the hose clamp and hose from the EVAP canister (2)
the hose clamp and hose from the leak diagnostic filter (3)
the hose clamp and hose from the canister purge (CP) valve (4)
3 screws.
