Removing the canister purge (CP) valve
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

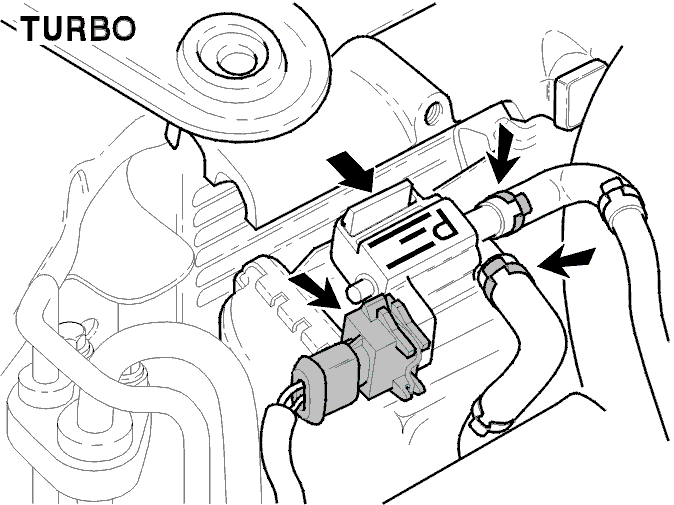

- Turbocharged engines: Remove the splash guards over the engine.
- Disconnect the connector.
- Make a note of the routing of the air hoses.
- Press the catch together. Lift off the valve.
- Turbocharged engines: lift the catch upwards. Lift the valve off upwards.
- Remove the clamps. Remove the hoses.
