Installing the canister purge (CP) valve
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

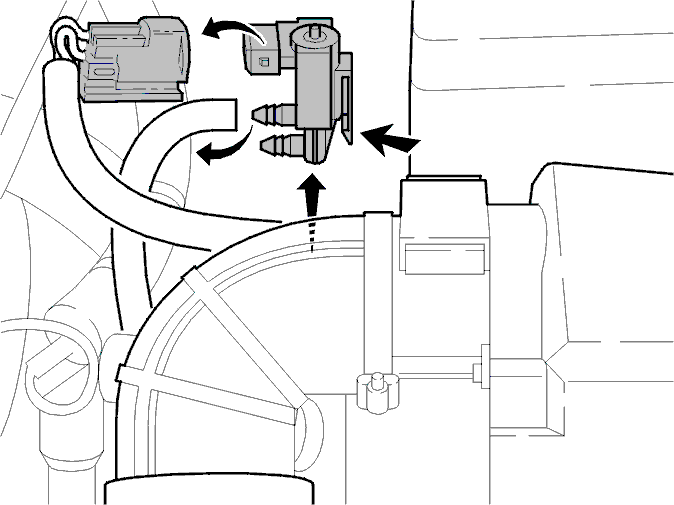

- Position the hoses as shown.
- Connect the hoses. Install the clamps.
- Reinstall the unit on the bracket. Ensure that the catches engage.
- Reconnect the connector.
- Turbocharged engines: reinstall the splash guards over the engine.
Start the engine. Read off any diagnostic trouble codes (DTCs).
