Installing fuel filler pipe

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

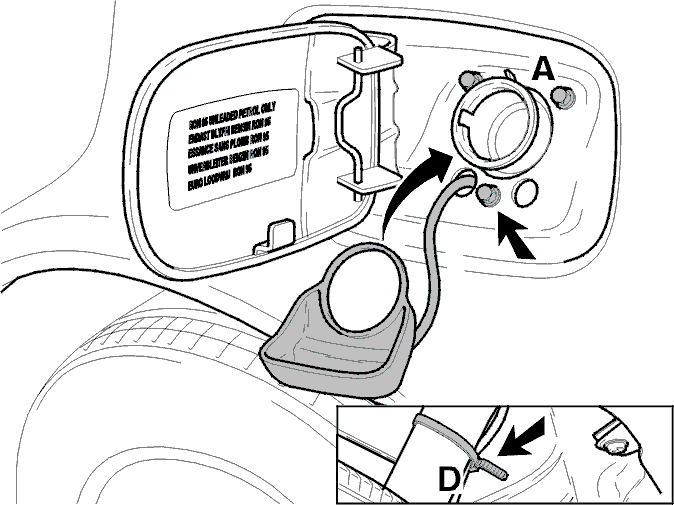

Fig 1: Installing Fuel Filler Pipe (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

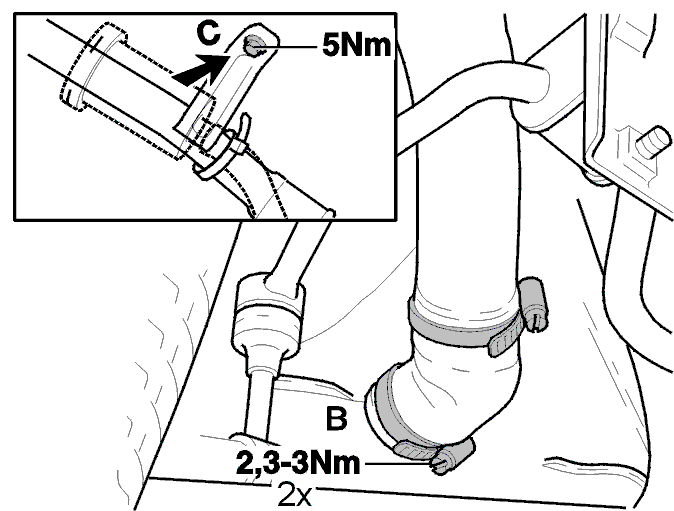

Fig 2: Installing Fuel Filler Pipe (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install fuel filler pipe.

Tighten fuel filler pipe (finger-tighten bolt C)
Install fuel hoses (B). Tighten clamps to a maximum of 3 Nm
Install the leak diagnostic pipe with clip and the fuel filler pipe bracket
Install three bolts at the top. Tightening torque 5 Nm
Reinstall the leak diagnostic filter and pipe
Reinstall gutter and secure the drain hose and the leak diagnostic filter pipe with a strap (D).
