WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

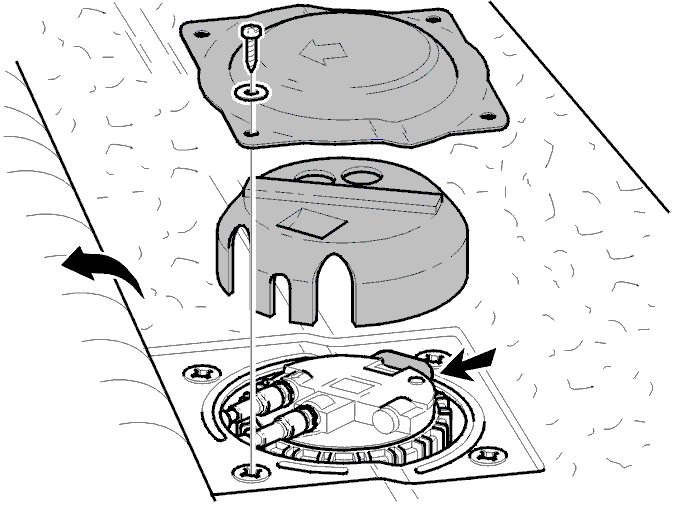

Fig 1: Removing/Installing Fuel Tank Protective Cover
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fold the rear seat forward
Remove the floor carpet
Remove the four screws. Remove the protective cover
