Fuel tank, installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

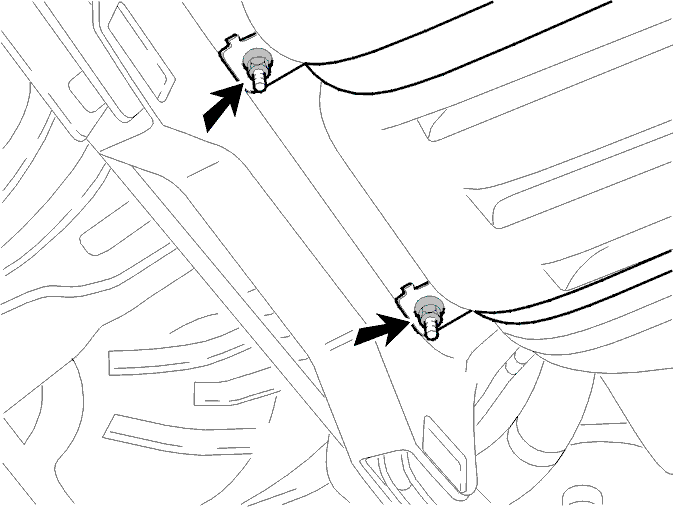

Fig 1: Fuel Tank Straps Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Tighten the rear nuts. Tighten until the inner edges of the straps are in contact with the car body.

Install the fuel tank under the car.
NOTE: Check that the foam rubber pads on top of the fuel tank are correctly positioned.
Secure the fuel lines in the mounting and on the fuel tank and heat shield. Tighten the holder
Install the fuel tank straps. Finger-tighten the nuts
Tighten the front nuts. Tighten to 25 Nm .
