Connections, connecting
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

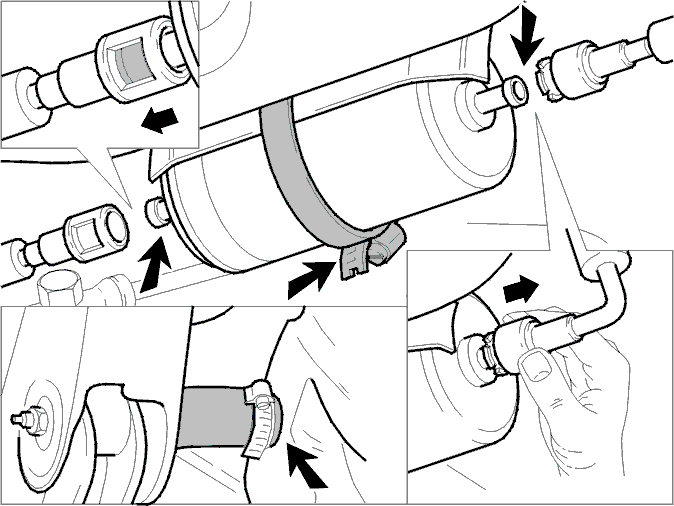

- Clean all components
- Connect the quick-release connectors on the fuel and EVAP lines.NOTE: Pull the quick-release connectors to check that they are secure.
- Connect the hose to the fuel filler pipe
- Install the clamp. Tighten to a maximum of 6 Nm
- Connect the quick-release coupling for the canister system.
