Connections, removing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

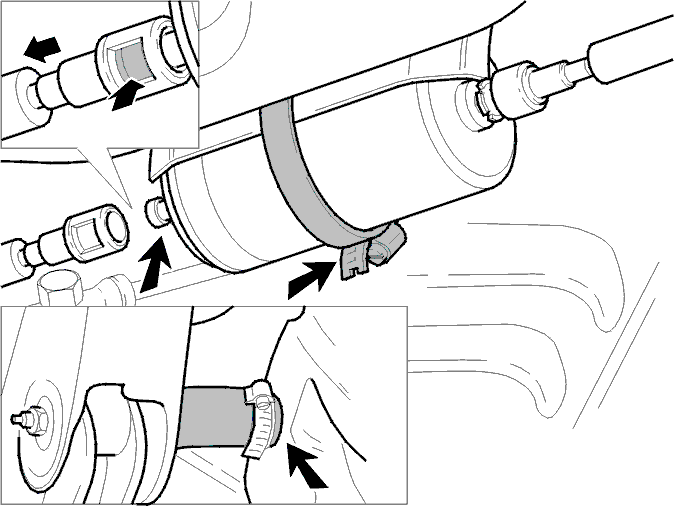

Fig 1: Removing Connections

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING: Protective gloves and protective goggles must be used for the following operations. This is due to the risk of fuel spillage.

Remove:

the fuel filler pipe
the quick-release connector for the fuel filter, see Fuel filter, removing .
NOTE: Wipe up any fuel spillage.
The quick-release connector for the EVAP hose. Press in the lock. Pull off the hose.
NOTE: The clip must be left on the fuel line.
the quick-release connector for the EVAP canister system. Press in the catch and pull off the hose
the quick-release connector for the fuel line. Press in the catch and pull off the hose
the quick-release connector for the EVAP system. Press in the catch and pull off the hose.
