Removing the special tools

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

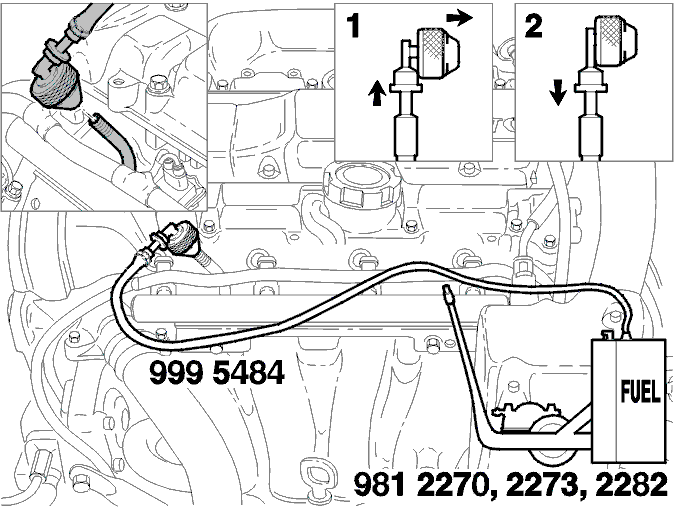

Fig 1: Removing/Installing Special Tools

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the tool 9995480 . Install the protective caps.

Reinstall the splash guard.

Lower the car.

Remove tool 9995484 . Install the protective caps.

Check for leaks.

NOTE: Do not forget to replace the protective caps on the nipples.

Install the cover over the fuel rail.

Turbocharged engines: Install the throttle body (TB) cover.
