Replacing the air conditioning (A/C) system pressure sensor: Removing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

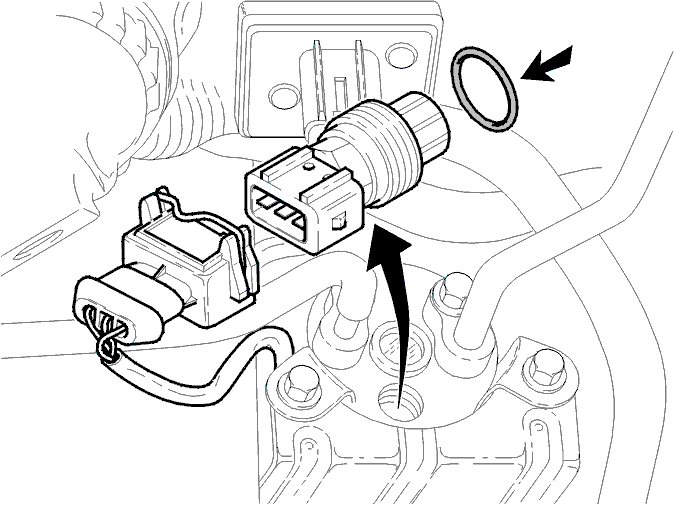

Fig 1: Removing Air Conditioning (A/C) System Pressure Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drain the air conditioning (A/C) system, see Draining and recycling refrigerant .

NOTE: Clean the area around the sensor.

Remove the battery clamp if necessary.
Disconnect the connector.
Remove the sensor.
