Replacing the air conditioning (A/C) system pressure sensor: Installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

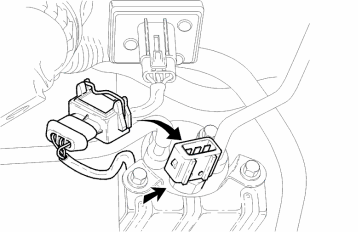

Fig 1: Installing Air Conditioning (A/C) System Pressure Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a new sealing ring. Lubricate the sealing ring with compressor oil.
Install the temperature sensor. Tighten the temperature sensor. Tightening torque 18 Nm .
Reconnect the connector.
Reconnect the battery clamp.
Fill the air conditioning (A/C) system, see Draining and recycling refrigerant .
