Replacing the knock sensor (KS): Preparations

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

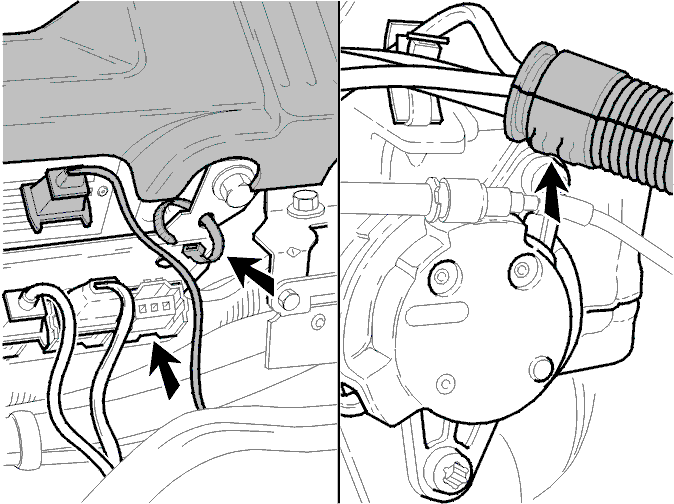

Fig 1: Removing/Installing Relay Cover, Trim Cover, Bracket Connector, Battery Negative Lead, Front Engine Cover & Starter Motor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

The relay cover.
The trim cover.
The connector from the bracket. Open the two clamps. Pull out the cable from the protective tube.
The battery negative lead.
The front engine cover.
The starter motor, see Starter motor, removing .
