Replacing camshaft position (CMP) sensor: Removing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the protective sleeve out of the clamp and open the outer cable protection
- Route the wiring out the protector
- Clean surrounding around sensor

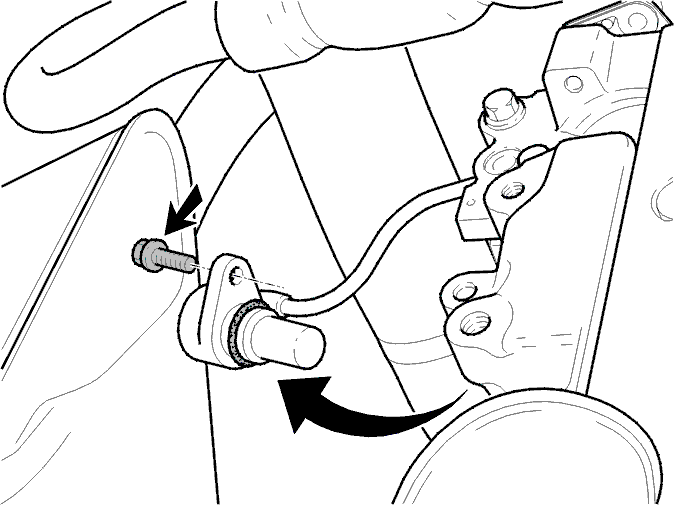

- Remove bolt and move camshaft position (CMP) sensor by turning and take sensor out
- Take cable out clamp.
NOTE:
Note the route of the cable and take it out of the clamp.
