Replacing camshaft position (CMP) sensor: Installing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

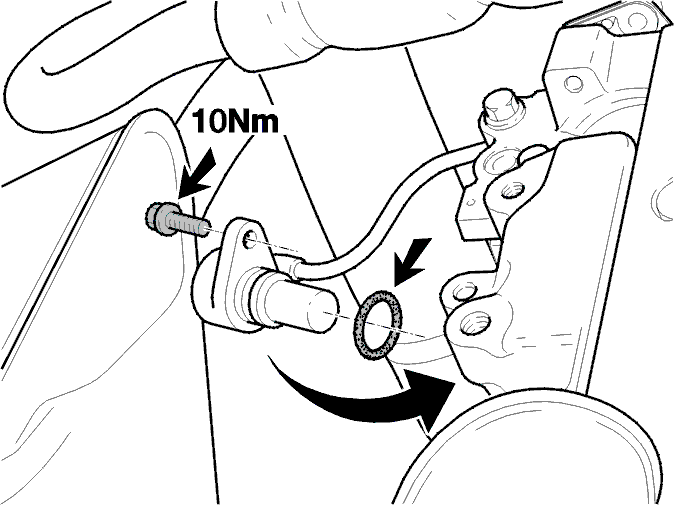

- Place a new o-ring on the sensor
- Clean housing
- Route the cable via the protective tube and connect the connector at the bracket
- Close the protective tube and install the tube in the clamps
- Place the sensor and tighten the bolt. Tightening torque 10 Nm
- Secure cable in the clamp.
