Replacing the DSA Control Module

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

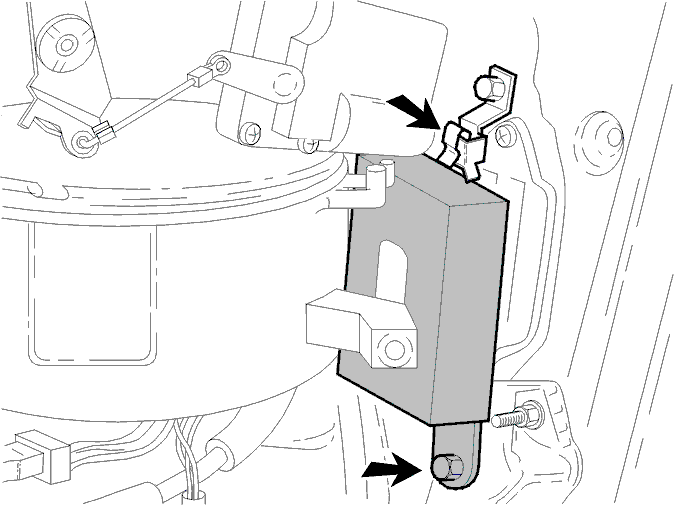

Fig 1: Replacing DSA Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove A-pillar trim at right-hand side.
Remove fixing screw and draw out DSA control module downwards from the bracket.
