Diagnostic trouble code (DTC) information
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Condition

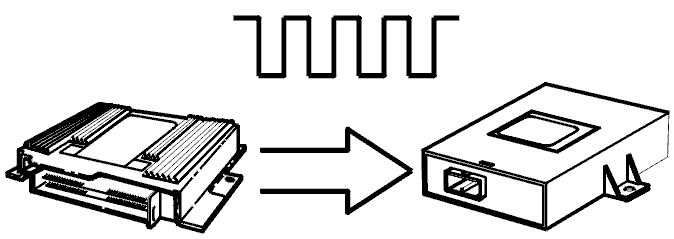

The throttle position (TP) sensor signal from the engine control module (ECM) is a pulsed signal (between approximately 0 V and battery voltage) with a fixed frequency (approximately 50 Hz). The pulse ratio (% duty) changes as the throttle opens. Diagnostic trouble code (DTC) DSA-231 is stored if the DSA control module registers that there are no pulses from the engine control module (ECM) for approximately 0.5 seconds.
Substitute Value
The DSA function is disengaged.
Possible Source
- Open-circuit in the signal cable.
- Short-circuit to supply voltage or ground in the signal cable.
- Contact resistance in the terminals.
Fault symptom[s]
- The DSA warning lamp lights.
- The anti-spin function is not operative while the DSA function is disengaged.
