Diagnostic trouble code (DTC) information
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Condition

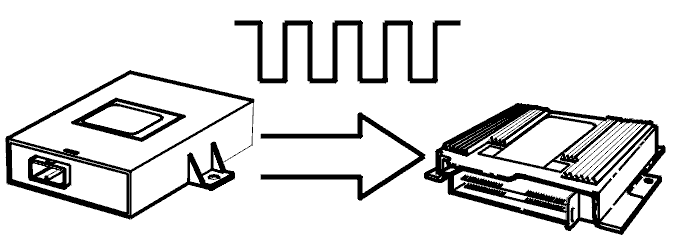

When the DSA control module registers that the speed at one of the front wheels increases too much (spins), the DSA control module transmits a signal requesting torque limiting to the engine control module (ECM). Diagnostic trouble code (DTC) DSA-131 is stored if the DSA control module registers that the current in the circuit for the engine control module (ECM) is too large or too small with the engine running.
Substitute Value
The DSA function is disengaged.
Possible Source
- Open-circuit in the signal cable
- Short-circuit to supply voltage or ground in the signal cable
- Contact resistance in the terminals.
Fault symptom[s]
- The DSA warning lamp lights
- The anti-spin function is not operative while the DSA function is disengaged.
