Preparing the car for the application of a protective coating
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

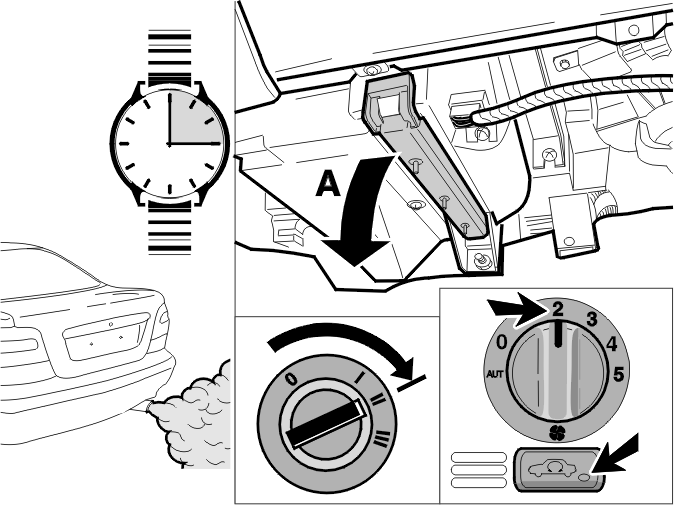

Turn off the engine after 15 minutes.
Remove the pollen filter cover (A).
Turn the ignition key to position 2.
Set the blower fan knob to position 2. This ensures that the coating is evenly distributed across the entire surface when it is applied.
Switch off the recirculation.
Open the doors. Ensure that there is sufficient ventilation.
Connect the bottle, P/N 116 1570, to the suction pipe on the special tool.
NOTE:
Ensure that the bottle is properly shaken first.
