Installing Special Equipment

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

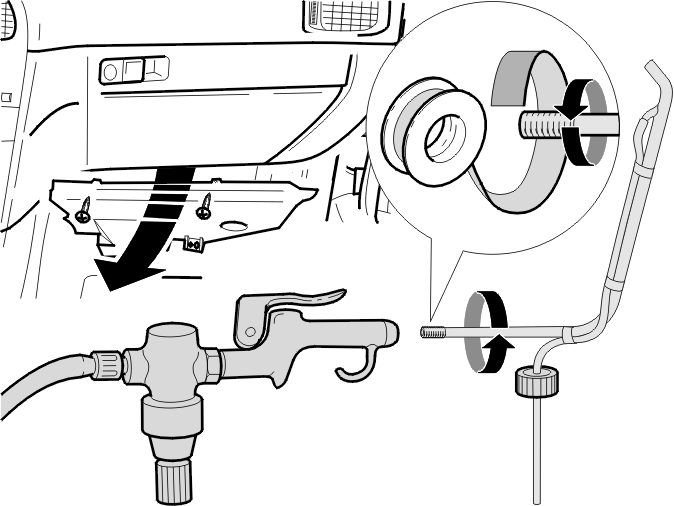

Fig 1: Identifying Special Tools
GLL117227Courtesy of VOLVO CARS OF NORTH AMERICA.

Assemble special tools 9997065 and 9997064 . Connect the spray gun to the compressed air system in the workshop.

Remove the panel under the dashboard on passenger side. See Removing the Panels For the Dashboard .
