Installing Components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

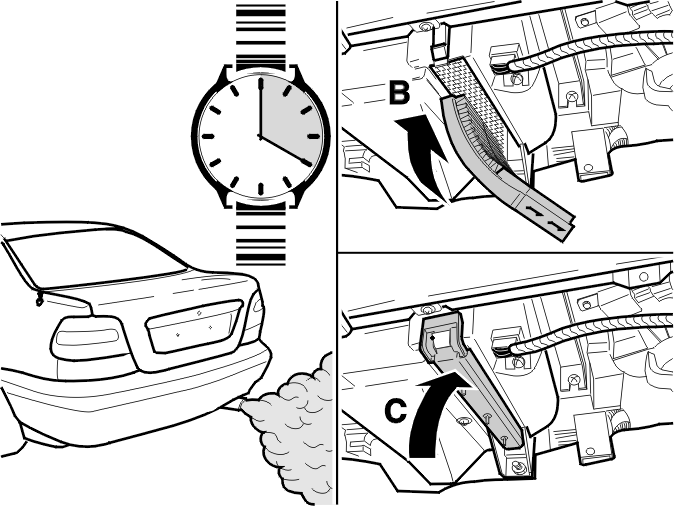

Fig 1: Identifying Pollen Filter And Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Switch off the engine after 20 minutes and reset all controls to their original positions.

Install:

the pollen filter (B)
the cover (C)
the panel under the dashboard. See Installing Components .

Remove the rags placed over the interior trim and close the windows.

Open the ventilation vents. Remove the cover over the floor vents.

NOTE: If the pollen filter is discolored (gray/black), this does not necessarily mean that it has to be replaced. To replace, see the service schedule.
