Applying the Protective Coating To the Evaporator

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

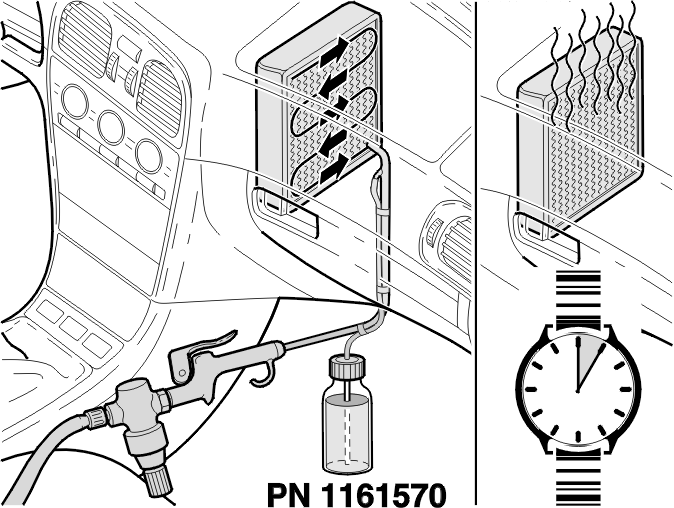

Fig 1: Identifying Nozzle Inserted Through Opening In Pollen Filter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Protect the interior trim and the floor carpets with rags.

Close all the dashboard air vents.

Use rags to cover the front and rear floor vents.

WARNING: Use protective goggles, face mask and gloves. Ensure that there is sufficient ventilation.

Insert the nozzle through the opening in the pollen filter.

Spray the protective coating over the entire evaporator using the special equipment.

Move the spray nozzle forward and back from the top to the bottom of the evaporator.

NOTE: Continue until the bottle is completely empty.

CAUTION: Allow the protective layer to dry for 5 minutes so that it adheres properly to the evaporator.

Clean the tool after completed work by flushing it thoroughly with water.
