Temperature Damper Motor: Adjustment
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

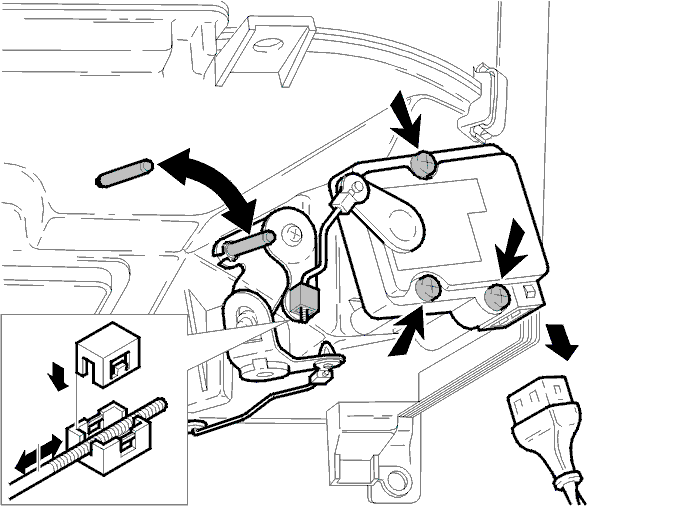

- Connect +12 V and ground to terminals 2 and 6. Let the motor turn so that the lever comes out of the motor.
- Transfer the control arm to the motor damper mechanism
- Install the motor
- Move the heater control to position 0
- Position the control rod and lock it.
HINT: When it is replaced the control motor must first be put in the correct position.
