Installing the Parking Brake Cable Inside the Car
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

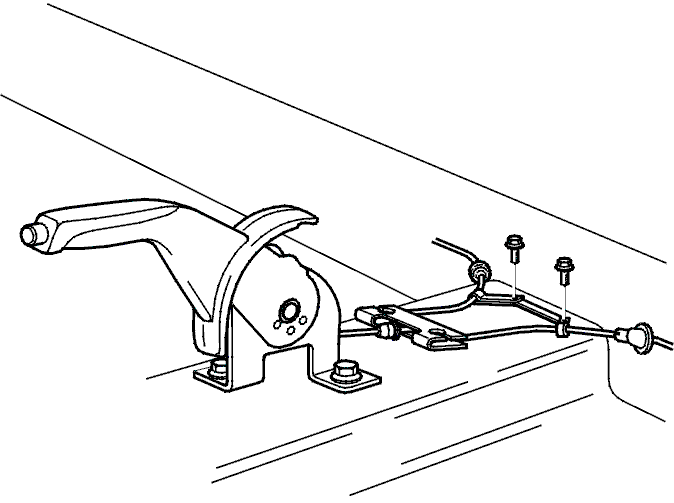

Thread the parking brake cable through the bracket and under the floor carpets to the front end.
Thread the inner cable through the eyelet. Pull the outer cable into the support.
Hook the inner cable(s) on the tab.
Secure the rear support in position.
Torque: 25 Nm.
Check that the lead-in is correctly installed.
Reposition the carpet. Install the sill molding.
Reinstall the rear seat.
Torque: 25 Nm.
