Replacing Parking Brake Switch
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the rear console.

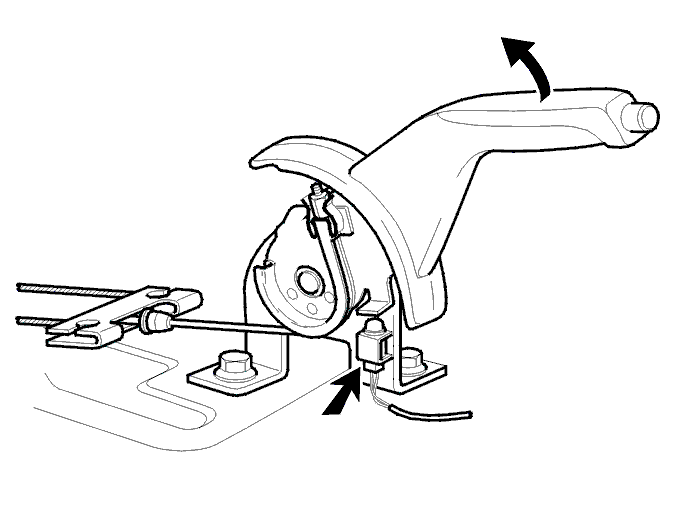

Pull on the parking brake until the switch clears the handle.
Remove the screw and take out the switch. Install the new switch.
Tightening torque 27 Nm. Check operation
Replace the rear console.
