Installing the Parking Brake Handle

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

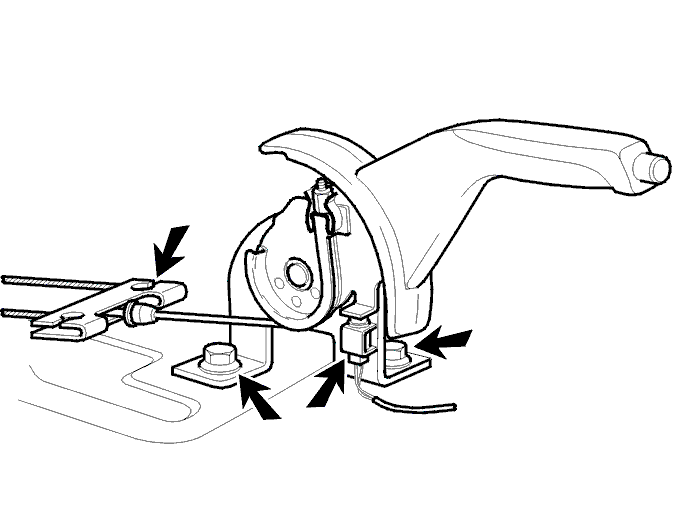

Fig 1: Identifying Parking Brake Contact Connector, Central Cable, Parking Brake Handle And Bolts
GLL116222Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook the central parking brake cable onto the balancer.

Install the parking brake handle and tighten the two bolts. Tightening torque 25 Nm.

Connect the connector.

Adjust the parking brake, see Adjusting the Parking Brake .
