Installing the Parking Brake Lever
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

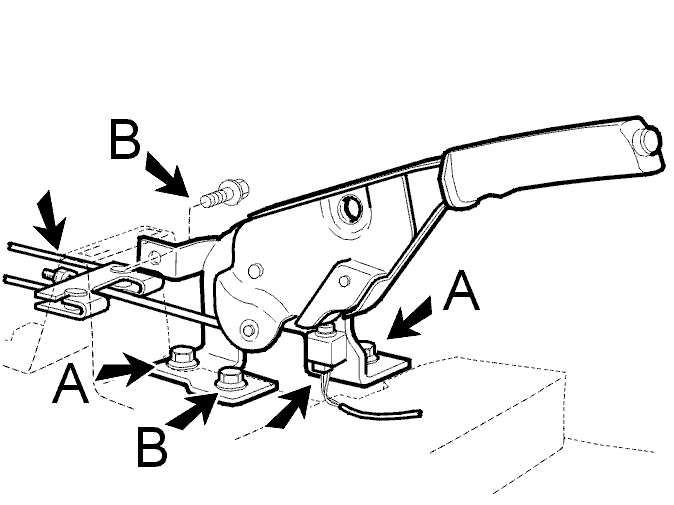

- Thread the balance spring onto the link rod. Install the nut
- Install the parking brake lever. Tighten the 4 screws.
Tighten to 25 Nm (A).
Tighten to 5 Nm . (B)
- Connect the connector
- Adjust the parking brake according to Parking Brake, Adjusting
