Remove the Rear Brake Caliper
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

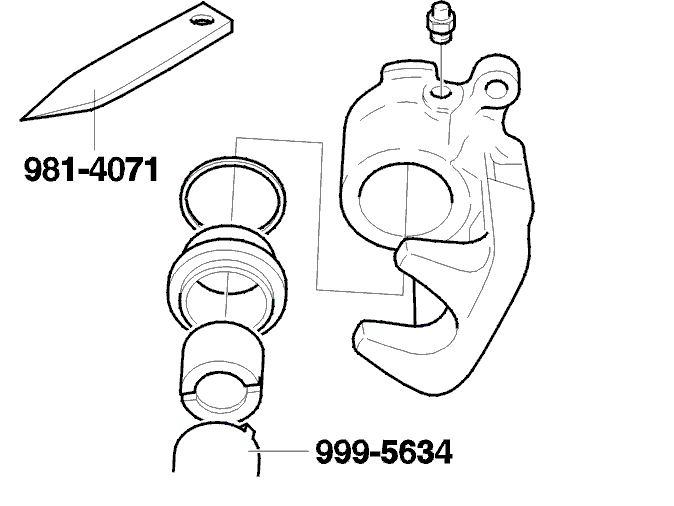

Remove:
- the piston with its casing by turning it counterclockwise
out of the brake caliper using
9995634
.
- the O-ring.
- use a weatherstrip tool
9814071
or the like so as not to damage the edge of the groove.
- the bleed nipple.
