Draining Off Brake Fluid

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

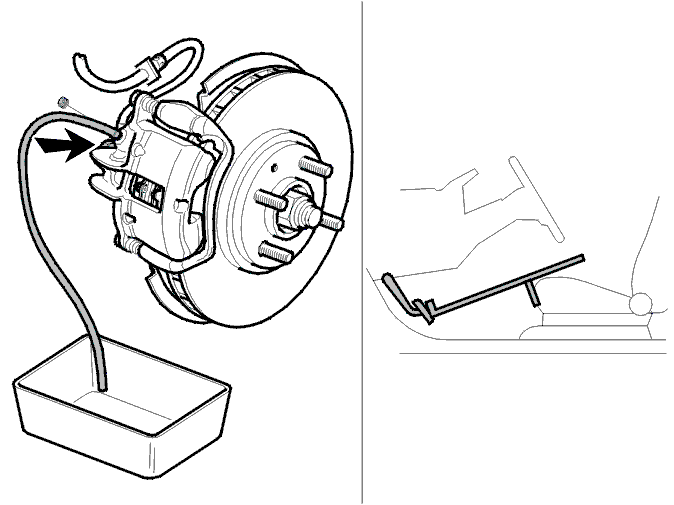

Fig 1: Draining Off Brake Fluid
GLL116135Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective cap from the bleed nipple, connect a hose and open the nipple.

Lock pedal in depressed position using a pedal jack.

Use a container to collect brake fluid.

Loosen the bolt of the brake hose mounting.
