Turning Back the Brake Piston

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

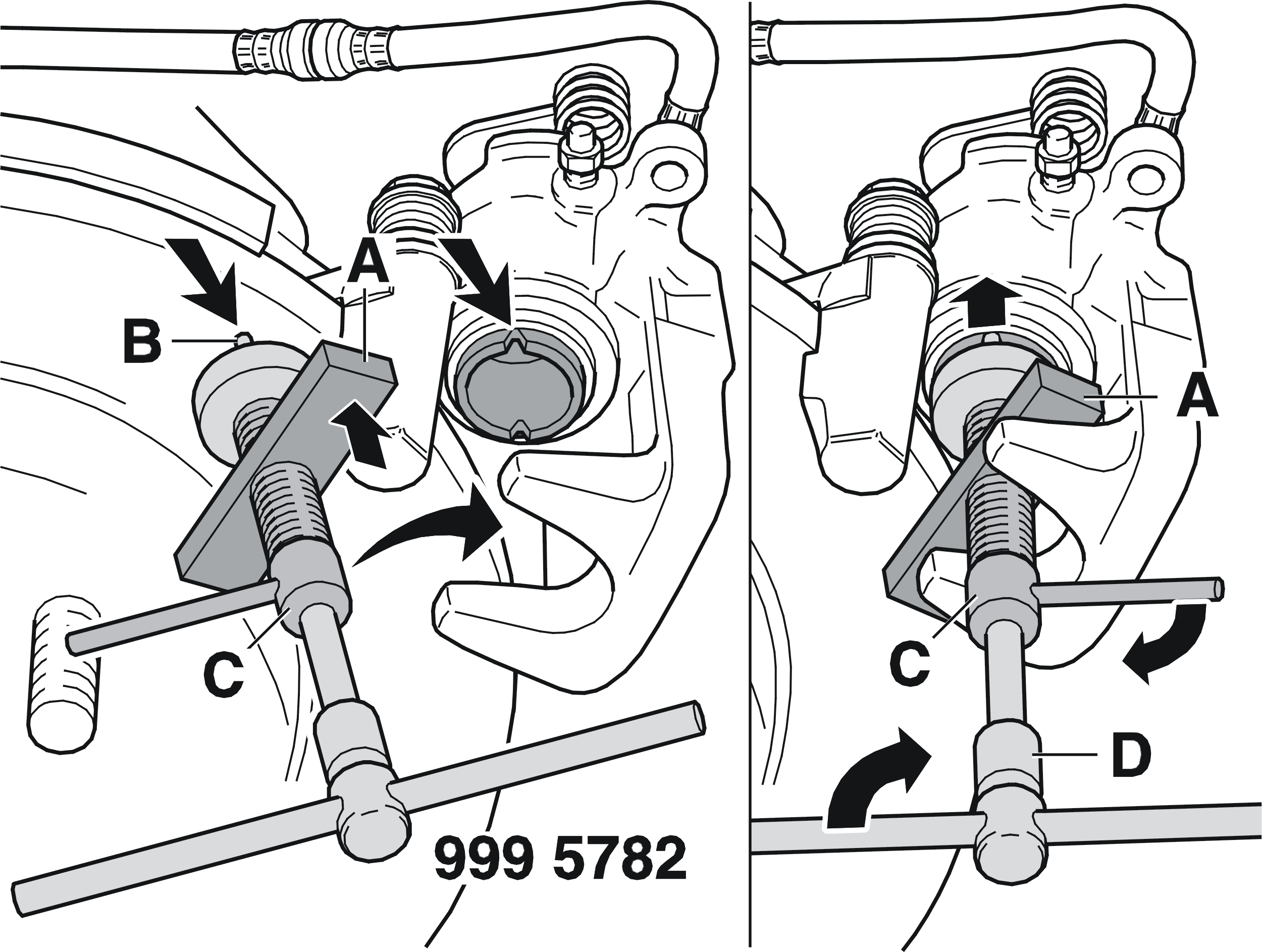

Fig 1: Turning Back Brake Piston

Courtesy of VOLVO CARS OF NORTH AMERICA.

Block the brake caliper against the brake disc. Use special tool 9995782 .
Turn the plate (A) forward over the spindle and insert the tool.
Install the pins (B) in the brake piston's slot.
Turn the spindle (C) so that the plate (A) is pressed against the brake caliper.
Turn the shaft (D) to the right and press back the piston and, at the same time, turn on the spindle (C) to the right, so that the plate (A) is in contact with the brake caliper.
Turn back the brake piston completely and remove the tool.
