Brake Pads Rear, Installing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

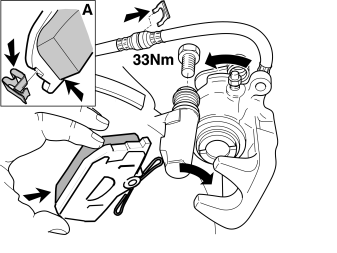

Fig 1: Installing Brake Pads Rear

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: The brake pads' beveled edge shall be positioned downward in the brake caliper.

Install the wear indicator (A) on the underside of the inner brake pad. Install the brake pads. Install the brake caliper and install the new screw. Tightening torque 33 Nm.

Install the brake hose in the support and install the attaching clip.
