Replacing the vacuum pump: Removal: Preparations
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Make a note of the anti-theft radio code.
Ignition off. Disconnect the battery negative lead
NOTE:
When removing the battery lead, see Note When Disconnecting And Connecting the Battery Lead

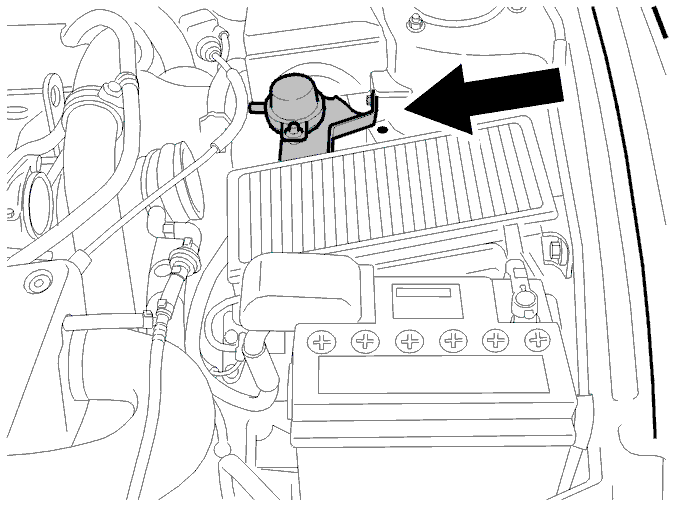

Remove the mounting screws for the relay box in the engine compartment. Place it to one side.
Remove the intake hose by the air cleaner cover and the switch by the mass air flow (MAF) sensor.
Remove the air cleaner cover.
