Installing the vacuum pump

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

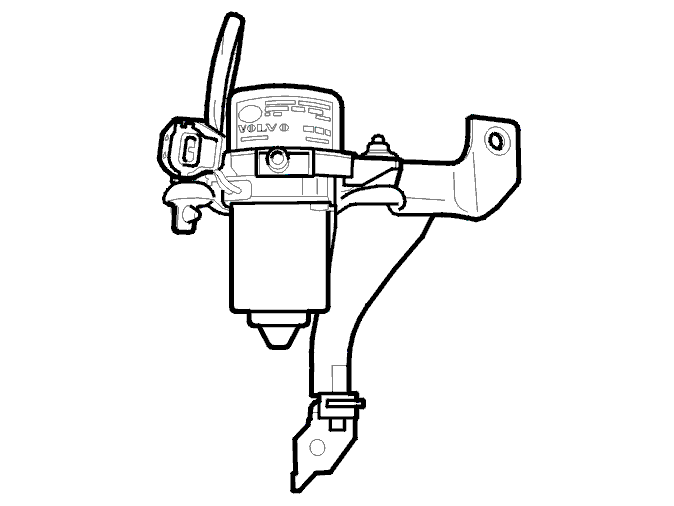

Fig 1: Removing/Installing Vacuum Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the terminals are clean and undamaged.

Install:

The vacuum pump
the mounting nuts. Ensure that the spacers are in place in the rubber mounting. Tighten to 6 Nm
the quick-release connector for the vacuum hose
the electrical terminal.
