Removing brake fluid reservoir

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

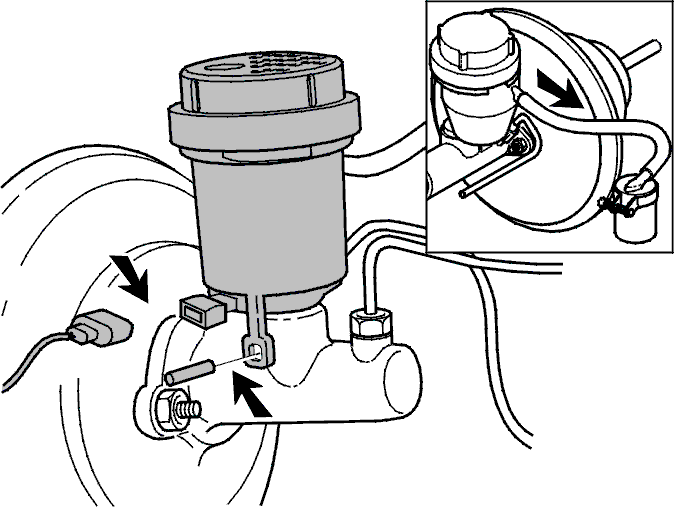

Fig 1: Removing Brake Fluid Reservoir

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

MT: the hose to the clutch cylinder, seal it off.
the brake fluid level sensor connector.
the retaining pin, use a 3 mm drift.
the brake fluid reservoir from the master cylinder.
the "O" rings from the master cylinder.

NOTE: The brake fluid reservoir can only be removed by first removing the retaining pin.
