Replacing and transferring components for the brake pedal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

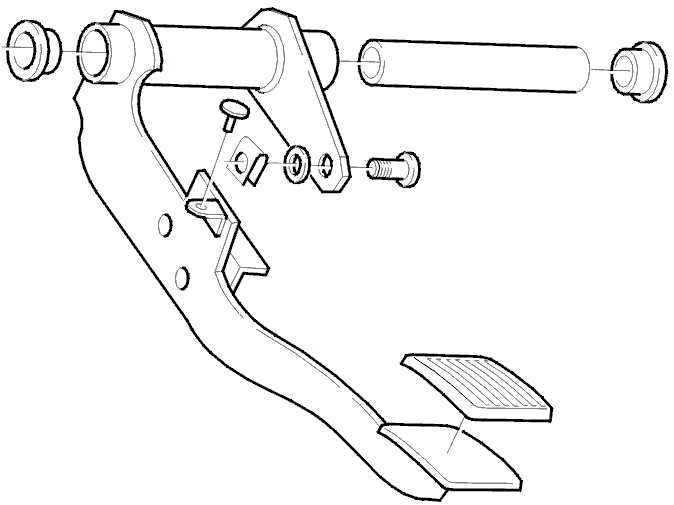

Fig 1: Replacing/Transferring Components For Brake Pedal
GLL116161Courtesy of VOLVO CARS OF NORTH AMERICA.

The two bearing bushings and the spacer bushing: lubricate using Volvo P/N 1161241-3:
