Installing components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

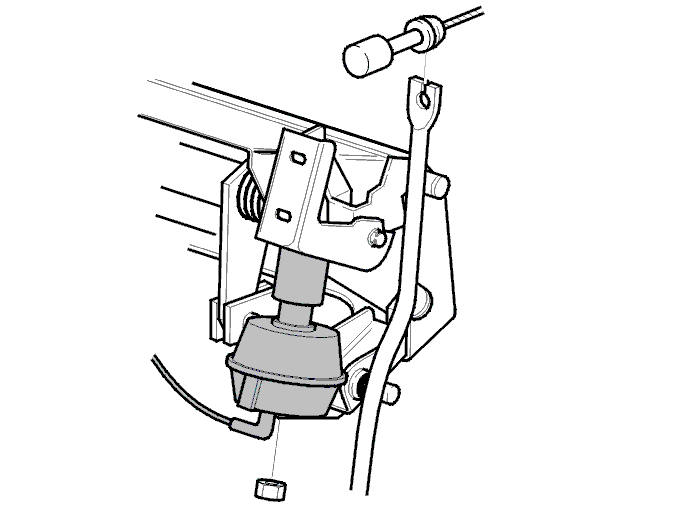

Fig 1: Removing/Installing Vacuum Reservoir, Steering Column Cover & Battery Negative Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the steering column. Install the lower screws for the steering column. Tighten the lower screws. Tighten to 25 Nm.

Install

the vacuum reservoir in cars with cruise control. Tighten to 10 Nm
both the steering column covers
the battery negative lead.
