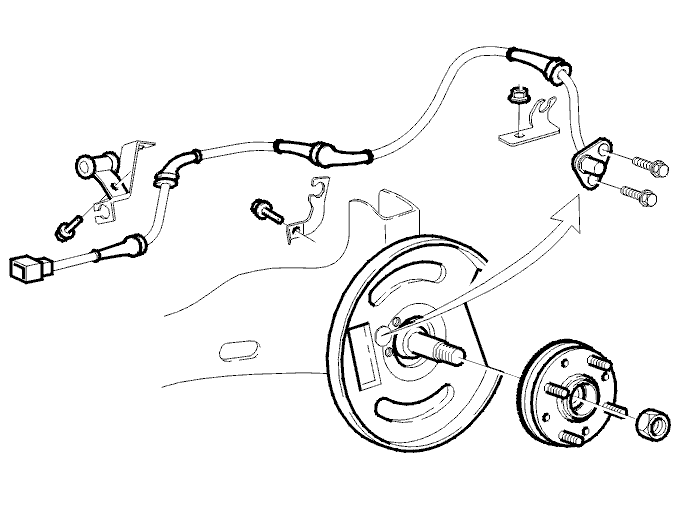

Removing rear wheel sensor
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Clean the sensor and the switch thoroughly before removal.
- Remove the protective cover over the switch
- Separate the connector
- Remove the sensor cable from the supports
- Remove the 2 screws for the sensor
- Remove the sensor and the sensor cable.
