Installing the ABS hydraulic modulator and the control module
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

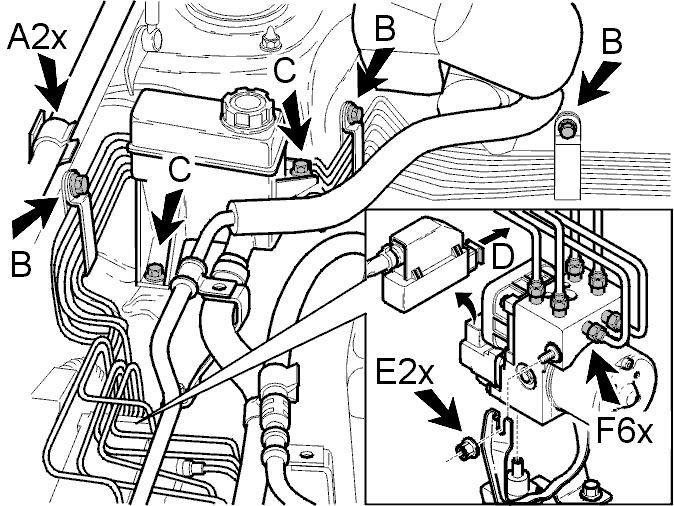

- Carefully lower the control module and ABS hydraulic modulator.
The brake pipes will follow at the same time. Do not damage the brake pipes
- Install the 3 rubber dampers and the 2 mounting lugs
- Tighten the 2 mounting nuts. Tighten to 25 Nm (E).
Install:
- the connector for the control module (D)
- the fluid reservoir (C) for the power steering system
- the mounting clamps (B) for the brake pipes. Ensure that the brake pipes are correctly positioned in the rubber mounting
- the hose mounting and the hoses (A).
