Removing pulse wheel from drive shaft

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

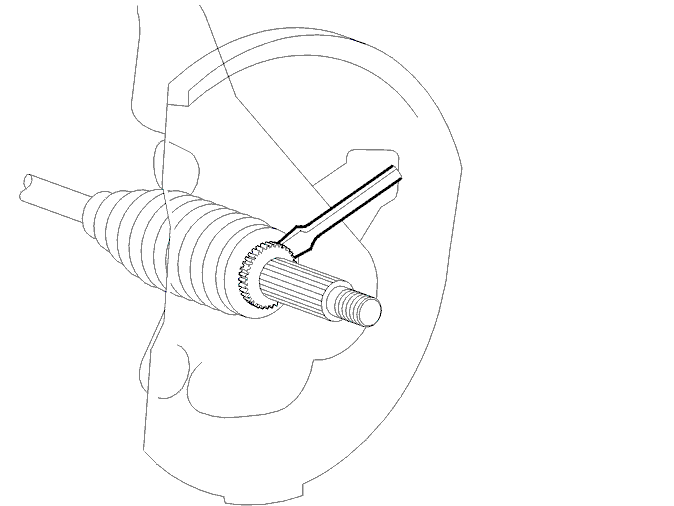

Fig 1: Removing Pulse Wheel From Drive Shaft
GLL116241Courtesy of VOLVO CARS OF NORTH AMERICA.

Tap carefully with a small chisel between the pulse wheel and the drive shaft until it is freed.

Make sure that the drive shaft is not pulled out of the transmission.

NOTE: Correct any damage that occurs.
